台湾通福三爪卡盘型号:TF3B-4/TF3B-5/TF3B-6/TF3B-8/TF3B-10/TF3B-12/TF3B-15/TF3B-18/TF3B-21/TF3B-24
产品规格
把握力性能曲线
-
TF3B-15
-
TF3B-12
-
TF3B-10
-
TF3B-8
-
TF3B-6
-
TF3B-5
-
TF3B-4
|
规格\型式 |
TF3B-4 |
TF3B-5 |
TF3B-6 |
TF3B-8 |
TF3B-10 |
TF3B-12 |
TF3B-15 |
TF3B-18 |
TF3B-21 |
TF3B-24 |
|
爪行程 (直径)(mm) |
5.4 |
5.4 |
5.5 |
7.4 |
8.8 |
10.6 |
10.6 |
10.6 |
13 |
13 |
|
柱塞行程 (mm) |
10 |
10 |
12 |
16 |
19 |
23 |
23 |
23 |
28 |
28 |
|
最大把握径 (mm) |
110 |
135 |
165 |
210 |
254 |
304 |
381 |
450 |
530 |
610 |
|
最小把握径 (mm) |
5 |
10 |
10 |
12 |
16 |
38 |
40 |
40 |
50 |
50 |
|
最高使用回转速 (r.p.m.) |
8000 |
7000 |
6000 |
4800 |
4200 |
3300 |
2600 |
2000 |
1700 |
1400 |
|
最大拉杆推力 (KN)(kgf) |
14 (1428) |
17.5 (1784) |
22 (2243) |
34 (3467) |
43 (4385) |
55 (5608) |
71 (7240) |
71 (7240) |
90 (9177) |
90 (9177) |
|
把握力 (KN)(kgf) |
28.5 (2906) |
36 (3671) |
57 (5812) |
86 (8769) |
111 (11319) |
144 (14686) |
180 (18355) |
180 (18355) |
234 (23861) |
234 (23861) |
|
GD² Moment of inertia w.D2 (kgf•m²) |
0.007 |
0.0018 |
0.057 |
0.167 |
0.315 |
0.737 |
2.273 |
2.273 |
9.25 |
16.85 |
|
重量 (kg) |
4 |
6.7 |
12.5 |
22.6 |
37 |
61 |
120 |
166 |
229 |
287 |
|
搭配液压缸 / 最高使用压力 (kgf/cm²) (RC) |
RC-4/24.5 |
RC-5/29.5 |
RC-6/28.5 |
RC-8/27 |
RC-10/27.5 |
RC-12/27.5 |
RC-15/23.5 |
RC-15/23.5 |
RC-15/30.5 |
RC-15/30.5 |

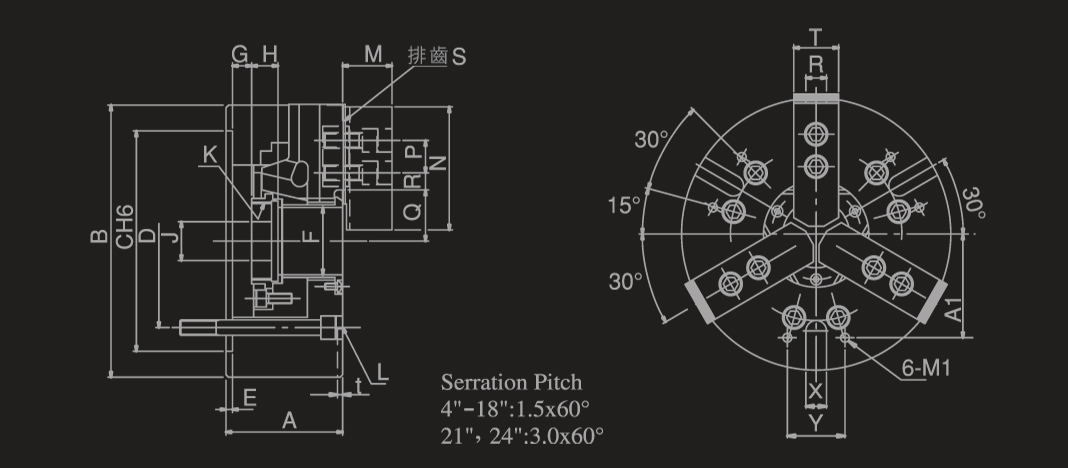

产品尺寸
|
代号\型式 |
TF3B-4 |
TF3B-5 |
TF3B-6 |
TF3B-8 |
TF3B-10 |
TF3B-12 |
TF3B-15 |
TF3B-18 |
TF3B-21 |
TF3B-24 |
|
A |
59 |
60 |
81 |
91 |
100 |
110 |
133 |
133 |
148 |
148 |
|
B |
110 |
135 |
169 |
210 |
254 |
304 |
381 |
450 |
530 |
610 |
|
C (H6) |
85 |
110 |
140 |
170 |
220 |
220 |
300 |
300 |
380 |
380 |
|
D |
70.6 |
82.55 |
104.78 |
133.35 |
171.45 |
171.45 |
235 |
235 |
330.2 |
330.2 |
|
E |
4 |
4 |
5 |
5 |
5 |
6 |
6 |
6 |
6 |
6 |
|
F |
26 |
33 |
45 |
52 |
75 |
91 |
117.5 |
117.5 |
170 |
170 |
|
G (Max) |
3.5 |
1 |
11 |
14.5 |
8.5 |
8 |
23 |
11 |
16 |
16 |
|
G (Min) |
-6.5 |
-9 |
-1 |
-1.5 |
-10.5 |
-15 |
0 |
-12 |
-12 |
-12 |
|
H |
17.5 |
20 |
19 |
20.5 |
25 |
28 |
35 |
39 |
40 |
40 |
|
J |
12 |
12 |
20 |
30 |
45 |
50 |
50 |
50 |
50 |
50 |
|
K (Max) |
M32x1.5 |
M40x1.5 |
M55x2 |
M60x2 |
M85x2 |
M100x2 |
M130x2.0 |
M130x2.0 |
M180x3.0 |
M180x3.0 |
|
L |
3-M10x60 |
3-M10x60 |
6-M10x80 |
6-M12x90 |
6-M16x100 |
6-M16x110 |
6-M20x150 |
6-M20x150 |
6-M24x170 |
6-M24x170 |
|
M |
24 |
26 |
29 |
39 |
43 |
51 |
61 |
70 |
70 |
70 |
|
N |
49.5 |
54 |
66 |
95 |
110 |
111 |
135 |
135 |
185 |
185 |
|
P |
14 |
14 |
20 |
25 |
30 |
30 |
43 |
43 |
60 |
60 |
|
Q (Max) |
23 |
26.5 |
32 |
38.7 |
51 |
61.3 |
70 |
82 |
108 |
108 |
|
Q (Min) |
20.3 |
23.8 |
29.25 |
35 |
46.6 |
56 |
64.7 |
76.7 |
101.5 |
101.5 |
|
R (Max) |
11.25 |
19.75 |
22.75 |
29.75 |
33.75 |
45.75 |
54.75 |
78.25 |
117.5 |
117.5 |
|
R (Min) |
6.75 |
7.75 |
9.25 |
14.75 |
14.25 |
15.75 |
20.25 |
18.25 |
21.5 |
21.5 |
|
S |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
3.0 |
3.0 |
|
T |
23 |
23 |
32 |
37 |
40 |
50 |
50 |
50 |
62 |
62 |
|
X |
- |
12 |
16 |
16 |
16 |
20 |
20 |
20 |
20 |
20 |
|
Y |
- |
30 |
36 |
45 |
60 |
60 |
80 |
80 |
100 |
100 |
|
A1 |
- |
52 |
65 |
80 |
102 |
100 |
150 |
150 |
200 |
200 |
|
M1 |
- |
M6 |
M8 |
M8 |
M10 |
M10 |
M12 |
M12 |
M12 |
M12 |
|
t |
- |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
